Description of the puparium and other notes on the morphological and molecular identification of Phthitia empirica (Diptera, Sphaeroceridae) collected from animal carcasses
Egyptian Journal of Forensic Sciences volume 10, Article number: 13 (2020)
A correct identification of species is fundamental in order to derive all the biological, ecological, and behavioral information useful to reconstruct previous events when insects are used in forensic and funerary archaeological contexts. Little attention was paid in the past to the description of the immature stages of flies, especially of species belonging to family found only occasionally on human cadavers and animal carrion. Sphaeroceridae species belong to this category.
In this work, adult and puparia of Phthitia empirica (Hutton, 1901) are illustrated and described. In addition, some observations about the molecular identification of this species are presented and discussed.
This work will allow the identification of puparia of this species providing additional tools in forensic entomological investigation. More in general, the effort of producing morphological descriptions and molecular information of species of potential forensic interest clearly implements the possibility to provide a deeper understanding of the peri- and post-mortem events in violent crimes.
During a study on the necro-microbiome characterizing the decomposition of animals (Tuccia et al. 2019), some specimens of Phthitia empirica (Hutton, 1901) (Diptera, Sphaeroceridae) were collected from rabbit carcasses over 2 years after the carcasses’ exposure.
Despite decomposition is a continuous process without discrete stages, different communities of arthropods colonize the decomposing matter following a predictable order, with some exceptions depending on the particular environmental conditions and on the thanatological conditions of the remains.
Flies in the families Calliphoridae, Sarcophagidae, and Muscidae are usually the first colonizers of cadavers and carcasses (Mégnin 1894; Smith 1986; Carter et al. 2007), followed by species in the families Piophilidae and Fanniidae, and occasionally Sphaeroceridae and Heleomyzidae. Even though rarely, other species in the families of Trichoceridae, Psychodidae, Milichiidae, Ulidiidae, and Drosophilidae have been found related to dead bodies (Giordani et al. 2018a). As already highlighted (Amendt et al. 2007, Giordani et al. 2018b, Giordani et al. 2018b, 2018c), the correct identification of the specimens collected from human and animal bodies in forensic and archaeological contexts represents one of the most important problems to be solved, especially when immature stages are found. This problem is still relevant and sometimes impossible to solve when empty puparia are found and no molecular analysis can be performed on them because of the low amount of DNA, or the DNA degradation and the presence of PCR inhibitors (Scholz et al. 1998; Kemp et al. 2006). The difficulties in puparia morphological identification is due to the paucity of specific identification keys for this developmental stage and to the fact that often some diagnostic characters of larvae are not visible or are deformed in the puparium (Giordani et al. 2018a). Furthermore, the problem of puparia identification is also worst in taxa only occasionally reported from cadavers and carcasses (Giordani et al. 2018b) where often the larvae are not described.
One of the most important contribute on Sphaeroceridae puparia knowledge comes from Skidmore studies on dipterous material from archaeological sites in Greenland, Iceland, and various parts of the British Isles (Skidmore 1992). Previous authors, such as Pitkin (1988) and Okely (1974), gave references for the puparia of Sphaeroceridae but some important features had been overlooked and their descriptions traditionally included trivial details emanating from the process of pupariation (Skidmore 1992).
In order to contribute in filling this gap, this paper reports some illustrations and the description of adults and puparia of P empirica. In addition, the molecular analysis based on the sequencing of the gene COI is also presented and discussed. In contrast, any conclusion about the correlation between the appereance of the species P. empirica and the decomposition timing was avoided because the sampling was not standardized and designed for this purpose.
Six rabbit carcasses (Oryctolagus cuniculus Linnaeus, 1758) (2.75–3.50 kg) were purchased from a pet food company (Kiezebrink, https://www.kiezebrink.co.uk/) and placed on the roof of the Science Building at the University of Huddersfield (West Yorkshire, UK, 53°38′36.5′′ N 1°46′40.1′′ W) between June 2014 and March 2015. No ethical approval was required because the experiment was carried on using rabbit carcasses sold for pet consumption (Tuccia et al. 2019). In September 2017, close puparia of different Diptera species were collected from the completely skeletonized carcasses and stored at room temperature in jars covered with laboratory paper until adult emergence. Adult flies and puparia were observed and photographed using a Leica M60 stereomicroscope (Leica, Germany) and a Keyence VHX-S90BE digital microscope, equipped with Keyence VH-Z250R and VH-Z20R lens and VHX-2000 Ver. 18.104.22.168 software (Keyence, Japan). The morphological identification of the adults was courteously done by Lorenzo Munari (Laboratory of Entomology, Museum of Natural History of Venice, Italy).
Scanning electron microscopy observations were performed on the puparia in addition to the previous mentioned stereo and digital microscopies because of their reduced size using a FEI Quanta 650 FEG SEM (Thermo Scientific, USA). Air-dried cleaned samples were mounted on metal stubs with conductive adhesive tape and coated with 40-60nm of Au-Pd in a SC7620 Mini Sputter Coater (Quorum Technologies, UK). Pictures were directly digitized from the SEM.
Molecular analyses were performed from adults, closed and empty puparia following two different extraction methods, QIAamp® DNA Mini kit and QIAamp® DNA Investigator kit. Manufacture instructions were followed except for the initial phase in which, to prevent the specimen destruction, each specimen was submerged in the extraction buffer and incubated overnight at 56 °C in a laboratory orbital shaker. The extracted DNA was quantified with the commercial kit “Quant-iT™ Qubit™ dsDNA High-Sensitivity Assay Kit” (Invitrogen, USA) on a Qubit® 3.0 Fluorometer (Invitrogen, USA). The quality of the extracted DNA has been assessed through Agilent Bioanalyzer® 2100 (Agilent, Santa Clara, CA, USA).
The amplification was carried out in the mitochondrial COI barcoding region using the universal primer designed by Folmer et al. (1994) with a temperature of annealing of 49.8 °C as reported in Bortolini et al. (2018).
The new sequences produced during this study are deposited in GenBank (Table 1). Sequences of COI gene from Sphaeroceridae species were downloaded from BOLD online database and included in the phylogenetic analysis (Table 2). Sequences were aligned with Clustal Omega (Sievers et al. 2011). The phylogenetic reconstruction through Neighbour Joining was performed with Kimura 2-parameter model on MEGA 7.0 (Kumar et al. 2016). Fifty sequences of 598 bp were used for the phylogenetic analysis. Two sequences of Drosophila melanogaster Meigen, 1830 were used as outgroup (Table 2).
Phthitia empirica (Hutton, 1901) - Sphaeroceridae
Syn: Borborus empirica Hutton, 1901
Limosina cadaverina Duda, 1918
Limosina pectinifera Villeneuve, 1918
Limosininae flies are small, generally 1 to 4 mm long (with the exception of the species in the genus Anatalanta Eaton, 1875 that exceed 10 mm in length) (Marshall 2012). In the analyzed samples of female P. empirica, the body length was 2.1 ± 1.5 mm (N = 5) while the length of the wings was 2.3 ± 0.5 mm. No males were sampled, so no measures are available for them
Description of the adult
Phthitia empirica adult is a dull brown fly characterized by the presence of a long distal dorsal bristle in the hind tibia, and eye height is less than double the genal height (Marshall et al. 2009). The head shows a grey ocellar triangle with two ocellar bristles and 3–5 short central setae, the frons has a dark brown M-shaped pattern surrounding a lighter brown triangle. Two small postvertical setae, two inner vertical bristles, two outer vertical bristles, three pairs of interfrontal bristles plus a minute pair just above ptilinal suture and two strong orbital setae with additional setulae below and inside orbitals are present. Lunula is bare. Antennae are dark brown, aristal hairs are dense and as long as aristal width at base, slightly longer and sparser in distal half. Strong vibrissae and other large setae are present in the light brown gena. The face is concave.
Thorax has a posterior pair of dorsocentral bristles. Acrostichal bristles are short with a prescutellar pair enlarged. One humeral bristle, one pre-sutural bristle, two notopleural bristles, and two post-alar bristles are present. Katepisternum has one large posterodorsal bristle and five to six small anterior setulae. Scutellum has four long marginal setae. No apical scutellar bristles are present. The hind tibia shows at least one long distal dorsal bristle and the mid femur has a row of anteroventral spine-like short setae. The mid tibia presents proximally one short anterodorsal and one short posterodorsal seta, and distally one small dorsal seta in front of one long anterodorsal and one posterodorsal setae, and a double row of posteroventral spine-like setae. Wings and wing veins are brownish. Crossveins r-m and dm-cu are separated by less than twice the length of dm-cu. Anal veins are sinuate.
Description of the puparium
Puparia, in the analyzed sample, are yellow to light brown (Fig. 2a–c), 3.39 ± 0.32-mm long (N = 11). Several excrescences surround the posterior region; they are denser and more packed around the anal plate. The late is constituted only by the anal cleft and its crumpled rim with no expansions (wings). All the anal papillae are absent or not discernable (Fig. 3a). The ventral welt of abdominal segment seven is made by two intersegmental inner rows of large and flame-shaped spines enclosed by external lines of smaller and closer spines (Fig. 3b).
Posterior spiracles are allocated on two inclined protuberances. The angle formed by their projection is greater than 90°. The slits follow the external shape of the spiracle in a “U-like” pattern. Filaments emanating from perispiracular glands are well visible (Fig. 3c, d). Anterior spiracles has 6–7 prospiracular lobes (Fig. 3e, f).
Biology and distribution
This cosmopolitan species, probably originated from Australia, was defined by Richards (1930) as a “domestic fly” because of its synantropic attitude. Reported from different locations, P.empirica is a common species in UK (Marshall et al. 2011). The species was reported feeding on animal excrements (Rohacek 1983), animal carrions, and human dead bodies (Marshall et al. 2009; Anton et al. 2011; Carles-Tolrá et al. 2012).
DNA extraction yielded positive results from all the entomological samples: adult, close, and empty puparia (Table 3). PCR amplification was positive for all adult and close puparium samples while negative results were obtained from empty puparia (Table 3).
In order to interpret the negative result of PCR amplification from some puparia, the dimensions of the extracted DNA fragments were assessed with Agilent Bioanalyzer. The result pattern excludes a potential degradation as reason of the negative amplification (data not shown).
To confirm the morphological identification, the phylogenetic reconstruction based on the amplification of the COI barcoding region was used.
The lack of sequences of P. empirica in GenBank prevented the directly identification of the species through the local alignment of the sequences using the online system BLASTn®. The output of the comparison resulted in a 92% identity with Phthitia ovicercus Marshall, 1992.

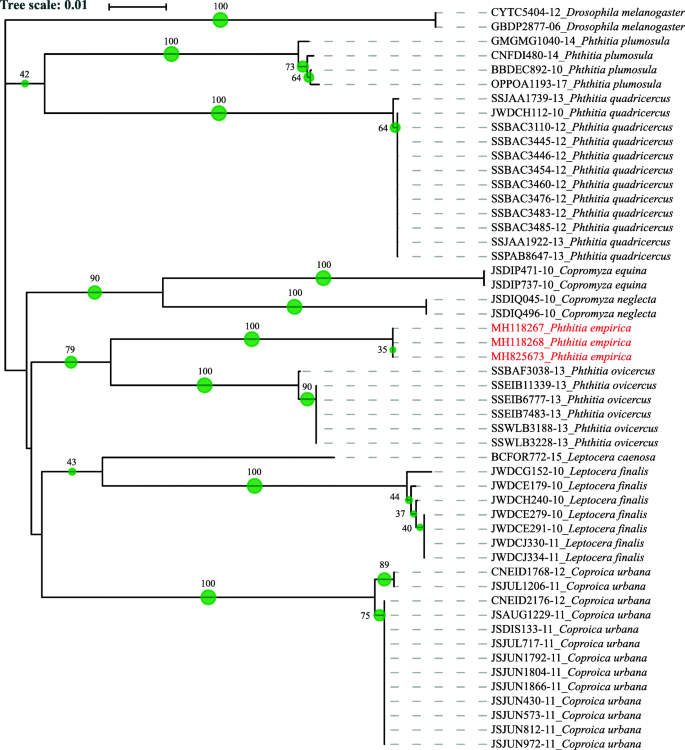

The NJ analysis of 52 sequences of 598 bp belonging to different genera (Coproica Róndani, 1861, Copromyza Duda, 1923, Leptocera Olivier, 1813, and Phthitia Enderlein, 1938) in the Sphaeroceridae family (Fig. 4) generated a phylogenetic tree with well-defined species clusters. The sequences obtained from the puparia collected from the rabbit carcasses (MH118267, MH118268, and MH825673) group together and appear to be closely related with P. ovicercus. In the reconstructed tree, the genera Leptocera and Copromyza appear to be monophyletic while Phthitia genus is found as polyphyletic. However, because of the weak bootstrap values at the basal nodes, no conclusions can be made about the relationship among and within the genera.
Discussion and Conclusions
In forensic cases, it is currently accepted that insects can provide the investigators important information about the time of death and the environment where the crime occurred (Amendt et al. 2007; Gennard 2007; Amendt et al. 2011; Hart et al. 2011; Tomberlin and Benbow 2015). The critical step to obtain this kind of information is the species identification. The literature about the morphology of adult insects of forensic interest is extensive (Barros de Carvalho and Antunes de Mello-Patiu 2008; Rochefort et al. 2015; Szpila et al. 2015) as though a great effort has been made by several authors to provide identification keys for larvae species of sanitary, medical, veterinary, and agricultural importance (Szpila 2010; Szpila et al. 2015; Grzywacz et al. 2017). Puparia, due to the hardness of their external sclerotized cuticle, are often the most abundant and Diptera remains associated with cadavers found in forensic—especially in old cases—and archaeological contexts (Gaudio et al. 2015; Giordani et al. 2018a; Pradelli et al. 2019), but they are still an under studied topic. Skidmore (1992) suggested the length of the puparium, the projections of the posterior spiracles, and the prospiracular type as the diagnostic characters of sphaerocerid puparia. Although there is a intraspecific variability in size in most sphaerocerids, there are nevertheless considerable interspecific differences within the family (Skidmore 1992). Despite this, the taxonomic importance of the posterior spiracles has been largely overlooked over time, the dimension and the lenght of the exserted tubercles as though as the position of the slits vary among the sphaerocerids. The characters always recognized of great taxonomic importance are the anterior spiracles, which range from short stellate or palmate structures to very long dendriform types (Skidmore 1992). On the contrary, the spiculation of the ventral abdominal belts appears to be unvarying throughout the family (Skidmore 1992).
The evaluation of the puparium general shape, size and presence of projections, although allowing the identification at family level, is not sufficient to reach the species level (e.g., Sessa et al. 2019). Furthermore, in case of empty puparia or dead pupae, the impossibility to rear the specimens to adults make the study of external characters the only way for identification. Some authors do not feel comfortable in the use of morphological character identification method considering the necessity of a specialized taxonomic knowledge (Amendt et al. 2011; Grzywacz et al. 2017). Molecular approaches have been developed to meet this scientist necessity. Gene database, because of the lack of information or the incorrectness of the uploaded information, do not allow yet an identification of all the taxa recognised of forensic interest (Bortolini et al. 2018; Garg et al. 2019). Therefore, the support of the morphological identification approach remains uncontested.
This study revealed that DNA extraction without impairing the morphology of the sample is possible for all the developmental stages investigated. The DNA amplification via PCR was successful for both adult and close puparia while was not efficient for empty puparia.
The reason of this negative result cannot be related with a too low amount of DNA or with a DNA degradation. Also, the presence of PCR inhibitors cannot be taken fully in account being the PCR of the closed puparia positive, despite a potential higher concentration of inhibitor co-extracted from the puparia cuticle. In this work, five puparia were used and the extracted DNA diluted in 100 μl. Further investigation needs to be performed to solve this technical issue.
Molecular analysis here performed clearly included the P. empirica sequences in a cluster with another species of the same genus with which it shows an identity, based on the BLAST analysis, of 92%. It is worth to mention that the aim of the phylogenetic approach was only to verify with which species/genus the analyzed samples were more related. No further comparison or discussion about the position of the species/genus among and within the Sphaeroceridae family based on molecular data can be done because of the paucity of the literature on this topic and the small dataset analyzed (Kits et al. 2013; Marshall et al. 2015).
In conclusion, because of the lack of available sequences, currently, some species are still not identifiable using only the molecular analysis. The synergy between the molecular and the morphological analysis is nowadays the only way to provide a reliable identification result for many species considered of potential forensic/archaeological interest. The sequences here produced are now deposited in NCBI GenBank and available online, for further works. Moreover, the illustration and description of the puparium of the species will help scientists in dealing with identification of samples from carcasses and cadavers despite the absence of adult, till now considered as the easiest or the only instar to identify.
Availability of data and materials
Data supporting our findings can be found with the corresponding author. Please contact the author for data requests.
Basic Local Alignment Search Tool
Barcode of Life Data System
Cytochrome c oxidase I
National Center for Biotechnology Information
Polymerase chain reaction
Scanning electron microscope
Amendt J, Campobasso CP, Gaudry E, Reiter C, LeBlanc HN, Hall MJ (2007) Best practice in forensic entomology-standards and guidelines. Int J Legal Med 121(2):90–104
Amendt J, Richards CS, Campobasso CP, Zehner R, Hall MJ (2011) Forensic entomology: applications and limitations. Forensic Sci Med Pathol 7(4):379–392
Anton E, Niederegger S, Beutel RG (2011) Beetles and flies collected on pig carrion in an experimental setting in Thuringia and their forensic implications. Med Vet Entomol 25(4):353–364
Barros de Carvalho CJ, Antunes de Mello-Patiu C (2008) Key to the adults of the most common forensic species of Diptera in South America. Rev Bras Entomol 52:390–406
Bortolini S, Giordani G, Tuccia F, Maistrello L, Vanin S (2018) Do longer sequences improve the accuracy of identification of forensically important Calliphoridae species? PeerJ 6:e5962
Carles-Tolrá M, Díaz B, Saloña M (2012) Algunos dípteros necrófilos capturados sobre cadáveres de cerdos en el País Vasco (España) (Insecta: Diptera: Brachycera). Heteropterus Rev. Entomol. 12:213–222
Carter DO, Yellowlees D, Tibbett M (2007) Cadaver decomposition in terrestrial ecosystems. Naturwissenschaften 94(1):12–24
Folmer O, Black M, Hoeh W, Lutz R, Vrijenhoek R (1994) DNA primers for amplification of mitochondrial cytochrome c oxidase subunit I from diverse metazoan invertebrates. Mol Mar Biol Biotechnol 3(5):294–299
Garg A, Leipe D, Uetz P (2019) The disconnect between DNA and species names: lessons from reptile species in the NCBI taxonomy database. Zootaxa 4706(3):401–407
Gaudio D, Betto A, Vanin S, De Guio A, Galassi A, Cattaneo C (2015) Excavation and study of skeletal remains from a World War I mass grave. Int J Osteoarchaeol 25(5):585–592
Gennard D (2007) Forensic entomology: An introduction. Wiley, Chichester
Giordani G, Grzywacz A, Vanin S (2018a) Characterization and identification of puparia of Hydrotaea Robineau-Desvoidy, 1830 (Diptera: Muscidae) from forensic and archaeological contexts. J Med Entomol 56(1):45–54
Giordani G, Tuccia F, Floris I, Vanin S (2018b) First record of Phormia regina (Meigen, 1826) (Diptera: Calliphoridae) from mummies at the Sant'Antonio Abate Cathedral of Castelsardo, Sardinia, Italy. PeerJ 6:e4176
Giordani G, Tuccia F, Zoppis S, Vecchiotti C, Vanin S (2018c) Record of Leptometopa latipes (Diptera: Milichiidae) from a human cadaver in the Mediterranean area. Forensic Sciences Research In press
Grzywacz A, Hall MJ, Pape T, Szpila K (2017) Muscidae (Diptera) of forensic importance-an identification key to third instar larvae of the Western Palaearctic region and a catalogue of the muscid carrion community. Int J Legal Med 131:855–866
Hart, A J, M J R Hall and A P Whitaker (2011). The use of forensic entomology to assist the criminal justice system. The Barrister Magazine. London, Media Management Corporation Ltd.
Kemp BM, Monroe C, Smith DG (2006) Repeat silica extraction: a simple technique for the removal of PCR inhibitors from DNA extracts. Journal of archaeological science 33(12):1680–1689
Kits JH, Marshall SA, Skevington JH (2013) Phylogeny of the Archiborborinae (Diptera: Sphaeroceridae) based on combined morphological and molecular analysis. PloS One 8(1):e51190
Kumar S, Stecher G, Tamura K (2016) MEGA7: Molecular evolutionary genetics analysis version 7.0 for bigger datasets. Mol Biol Evol 33(7):1870–1874
Marshall S, Roháček J, Dong H, Buck M (2011) The state of Sphaeroceridae (Diptera: Acalyptratae): A world catalog update covering the years 2000-2010, with new generic synonymy, new combinations, and new distributions. Acta Ent Mus Nat Pra 51:217–298
Marshall SA (2012) Flies: The Natural History & Diversity of Diptera. Firefly Books, Richmond Hill
Marshall SA, Hall SCB, Hodge S (2009) A review of the genus Phthitia Enderlein (Diptera: Sphaeroceridae: Limosininae) in New Zealand, with the description of two new species. N Z Entomol 32(1):48–54
Marshall SA, Skevington JH, Kelso S, Zhou C (2015) A redefinition and review of the genus Myrmolimosina Marshall (Diptera: Sphaeroceridae), with morphological and molecular assessments of new species from Mexico and Guatemala. Can entomol 147(6):696–701
Mégnin J-P (1894) La Faune des Cadavres: Application de l'Entomologie à la Médecine Légale. G. Masson, Paris
Okely, E, F (1974). Description of the puparia of twenty-three British species of Sphaeroceridae (Diptera, Acalyptratae). Transactions of the Royal Entomological Society of London, 126(1), 41-56.
Pitkin BR (1988) Lesser dung flies. Diptera: Sphaeroceridae Handbooks for the Identification of British Insects , Vol 10. Part 5e. The Royal Entomological Society of London, London, p 175
Pradelli J, Rossetti C, Tuccia F, Giordani G, Licata M, Birkhoff J, Verzeletti A, Vanin S (2019) Environmental necrophagous fauna selection in a funerary hypogeal context: The putridarium of the Franciscan monastery of Azzio (northern Italy). Journal of Archaeological Science: Reports 24:683–692
Richards OW (1930) The british species of Sphaeroceridae (Borboridae: Diptera). Zoological Society of London, London
Rochefort S, Giroux M, Savage J, Wheeler TA (2015) Key to forensically important Piophilidae (Diptera) in the Nearctic Region. Canadian Journal of Arthropod Identification 27:1–37
Rohacek J (1983) Succession of adults of Sphaeroceridae (Diptera) on bear excrement in central Slovakia (Czechoslovakia). Biologia (Bratislava) 38:591–598
Scholz M, Giddings I, Pusch CM (1998) A polymerase chain reaction inhibitor of ancient hard and soft tissue DNA extracts is determined as human collagen type I. Anal Biochem 259(2):283–286
Sessa F, Varotto E, Salerno M, Vanin S, Bertozzi G, Galassi FM, Maglietta F, Salerno M, Tuccia F, Pomara C (2019) First report of Heleomyzidae (Diptera) recovered from the inner cavity of an intact human femur. J Forensic Leg Med. 66:4–7. https://doi.org/10.1016/j.jflm.2019.05.021
Sievers F, Wilm A, Dineen D, Gibson TJ, Karplus K, Li W, Lopez R, McWilliam H, Remmert M, Söding J, Thompson JD, Higgins DG (2011) Fast, scalable generation of high-quality protein multiple sequence alignments using Clustal Omega. Mol Syst Biol 7:539–539
Skidmore P (1992) Notes on the taxonomy of the puparia of British Sphaeroceridae. Dipterist’s Digest 13:6–22
Smith KGV (1986) A Manual of Forensic Entomology. Cornell University Press, Ithaca
Szpila K (2010) Key for the identification of third instars of European blowflies (Diptera: Calliphoridae) of forensic importance. Current Concepts in Forensic Entomology. In: Amendt J, Goff ML, Campobasso PC, Grassberger M (eds) . Springer Netherlands, Dordrecht. https://doi.org/10.1007/978-1-4020-9684-6_3:%2043-56
Szpila K, Richet R, Pape T (2015) Third instar larvae of flesh flies (Diptera: Sarcophagidae) of forensic importance—critical review of characters and key for European species. Parasitol Res 114(6):2279–2289
Tomberlin JK, Benbow ME (2015) Forensic Entomology: International Dimensions and Frontiers. CRC Press, Boca Raton
Tuccia F, Zurgani E, Bortolini S, Vanin S (2019) Experimental evaluation on the applicability of necrobiome analysis in forensic veterinary science. MicrobiologyOpen:e828
We thanks Lorenzo Munari (Laboratory of Entomology, Museum of Natural History of Venice, Italy) for the identification of the specimens and the useful information provided.
Adherence to national and international regulations
This research was not financially supported by any organization.
Ethics approval and consent to participate
Consent for publication
This study does not include publishing of personal data.
The authors declare that they have no competing interests.
